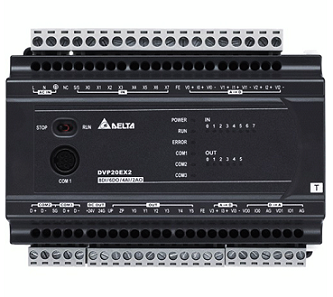

ES2 / EX2 Series

About ES2 / EX2 Series

Specifications -

MPU points: 16 / 20 / 24 / 32 / 40 / 60
Program capacity: 16k steps
Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points

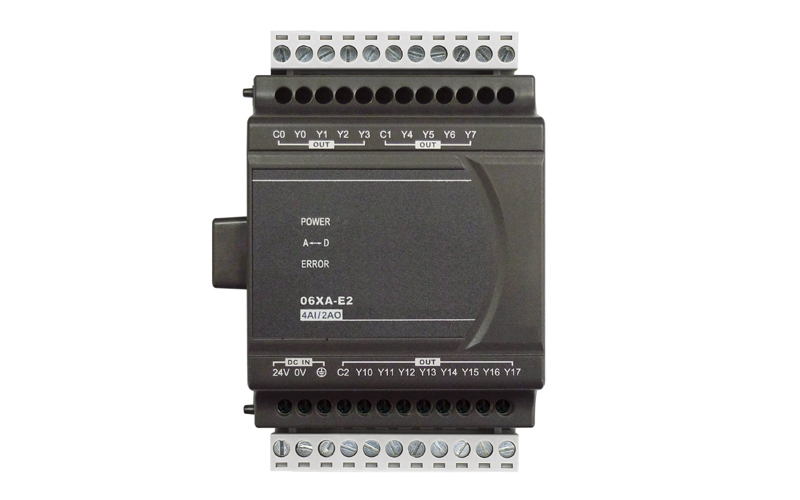

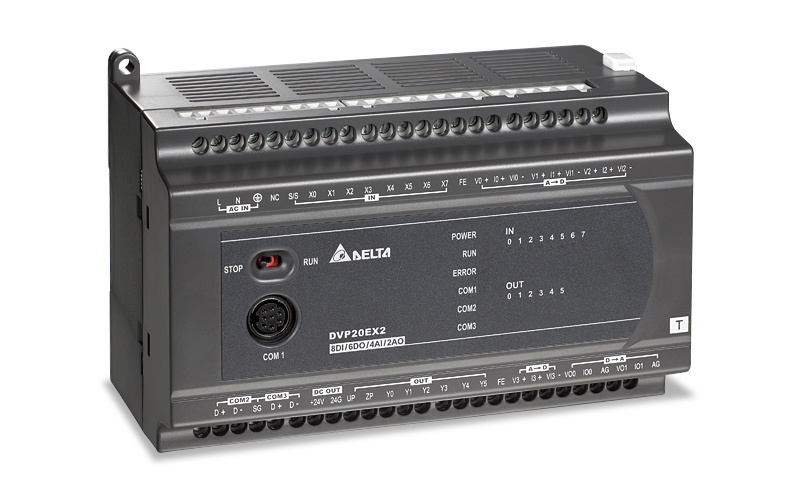

DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution.
Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes
New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration
Application in emerging industry: Exclusive instructions and function blocks designed for PV solar tracker
Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta's AC motor drives
Password protection: Password for subroutine, user ID, restriction on trial times
Highly efficient instruction efficient instruction execution

Models

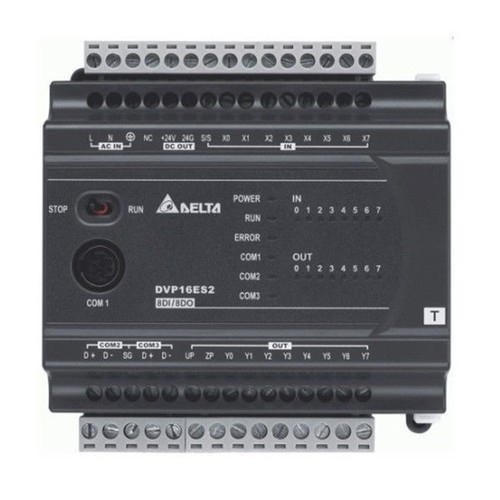

DVP16ES200R/T - (I/O points 8/8)

DVP24ES200R/T - (I/O points 16/8)

DVP32ES200R/T - (I/O points 16/16)

DVP40ES200R/T - (I/O points 24/16)

DVP60ES200R/T - (I/O points 24/24)
